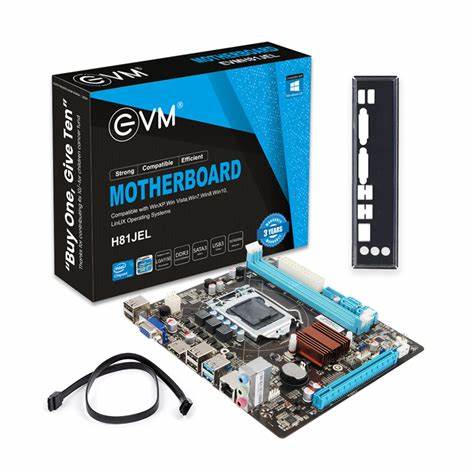

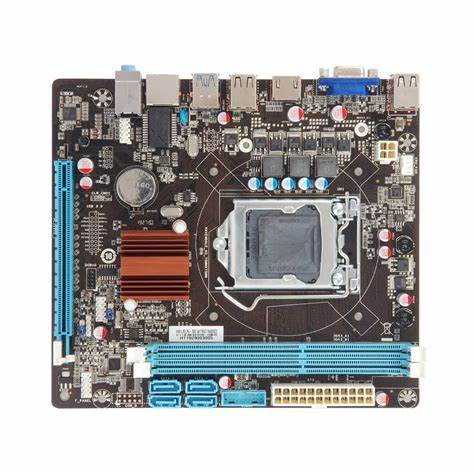

Get reliable performance for your budget desktop build with the EVM H81JELS (H81JEL) motherboard. Designed for the 4th generation Intel processors, it offers modern storage via NVMe, dual video outputs, and flexible memory options.
-
Compatible with Intel Core i3, i5, i7 (4th gen) CPUs on Socket 1150
-
Memory support: 2 DDR3 DIMMs up to 1600 MHz; total up to 16 GB
-
Storage: NVMe slot for SSD + 4 SATA 6 Gb/s ports for SSDs/HDDs
-
Video outs: HDMI + VGA for connecting modern and older displays
-
Multiple USB 3.0 and USB 2.0 ports, LAN & audio, PCIe x16 expansion for graphics cards
-
Micro-ATX form factor, good choice for compact builds offering expansion options
| Spec | Details |
|---|---|
| Chipset / Socket | Intel H81 Chipset, Socket LGA 1150 (4th Gen Intel CPUs) |
| CPU Compatibility | Intel Core i3 / i5 / i7 (4th Gen), Pentium / Celeron (4th Gen) |
| Memory | 2 × DDR3 slots, supports 1066/1333/1600 MHz, up to 16 GB total |
| NVMe Support | Has NVMe slot for SSD |
| SATA Ports | 4 × SATA 6 Gb/s ports |
| Expansion Slots | 1 × PCIe x16 (runs at x8 in some cases) + PCIe x1 slot |
| I/O Ports | HDMI, VGA, LAN (RJ-45), multiple USB ports (both USB 2.0 & USB 3.0) |
| Form Factor | Micro-ATX |
